Spec Name
|
Spec Value
|
|---|---|
| Vendor | RoboSense |
| Channel | 128beam |
| Wavelength | 905nm |
| Laser class | class1 |
| Accuracy | ±3cm (typical) |

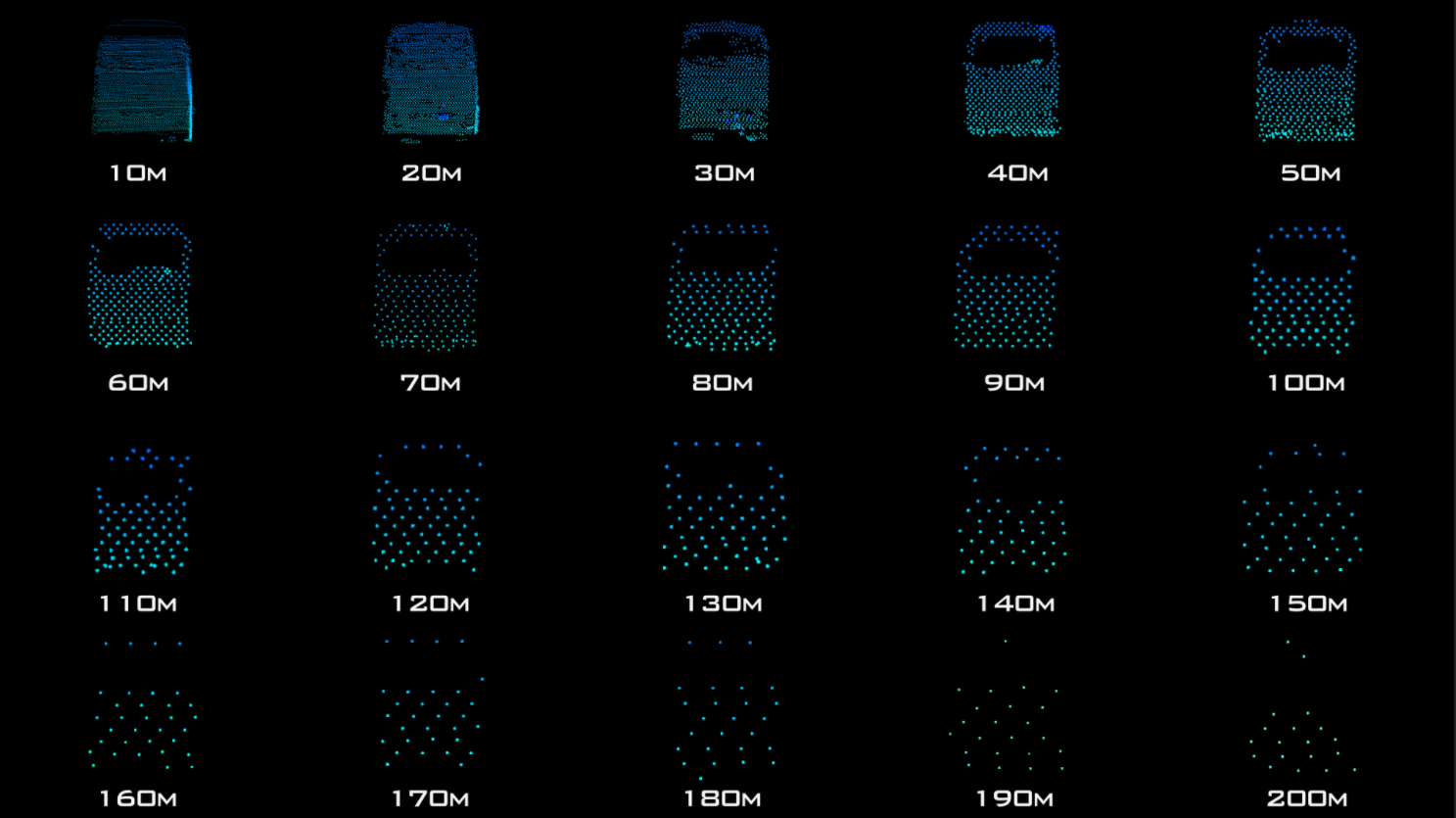

| Measurement range | 250m (200m@10% NIST) |
| Blind spot | ≤1.0m |
| Vertical FOV | 40° |
| Vertical angular resolution | minimum 0.1° |
| Horizontal FOV | 360º |
| Data rate | 2,304,000pts/s (single return) , 4,608,000pts/s (dual return) |
| Frame rate | 300/600/1200rpm (5/10/20Hz) |
| Interface | 1000Mbps Ethernet |
| Protection level | IP67 |
| Operating temperature | -30℃ to 60°C |
| Storage temperature | -40℃ to 85°C |
| Working voltage | 19V-32V |
RoboSense LiDAR RUBY
